Software Products - Modelica Libraries

Statistics Library

Definition of Statistical Variations of Parameters and Variables

The Statistics Library is designed to handle statistical analysis tasks using Modelica functions by variation of parameters and variables. In order to analyze the performance and robustness of system models, there are two main applications of the library:

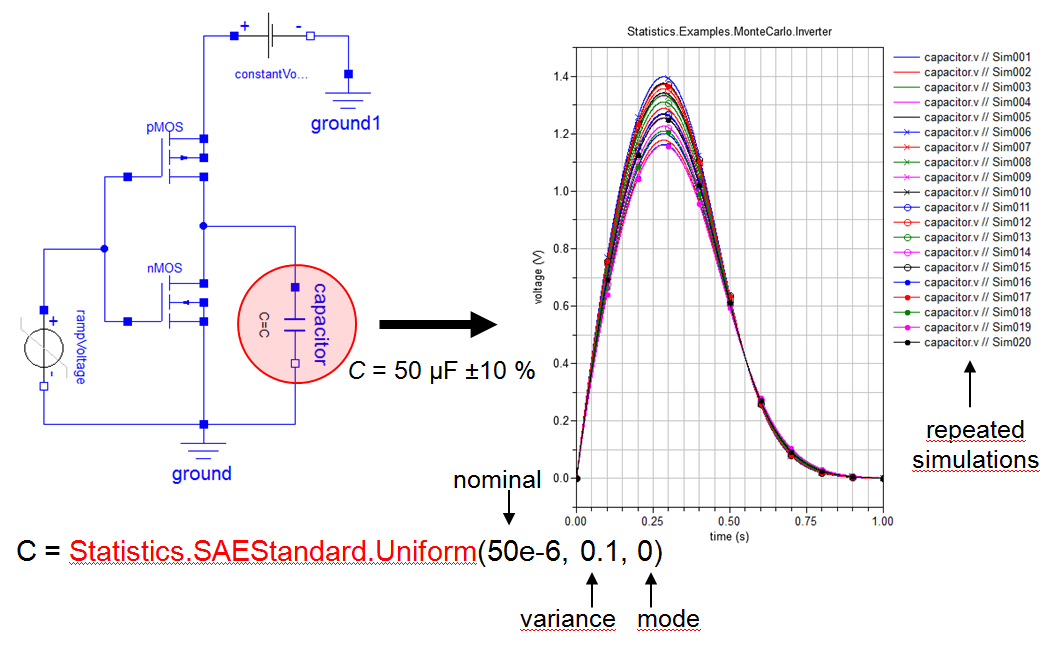

1. Monte Carlo analysis, where the model parameters are calculated by statistical distribution functions. Repeated simulation varies the parameters according to the chosen distribution.

2. Noise Generation: The sampled call of a statistical distribution function generates noise during transient simulation.

The Statistics Library was developed in the Fraunhofer research project CAROD. It includes a set of statistical functions based on standard SAE J2748 and supports:

  • Usage of the same model for nominal and Monte Carlo analysis

  • Possibility to assign different statistical distributions to one parameter

  • Continuous and discrete distributions which may be user-defined

  • Possibility to specify correlation between parameters and variables

  • Independent random number generation for each parameter and variable

  • Reproducibilty of a Monte Carlo simulation

Further Information

Statistics Library, Catalog Page (PDF, 239 kB)
Modelica Libraries, Catalog (PDF, 4.8 MB)


Statistics Library 1.3 is available for Dymola.
Tested on Dymola 2013 and Modelica Standard Library 3.2.
We plan to make it available for SimulationX soon.

For more information, prices and quotations please contact info@Bausch-Gall.de.
